Product Overview

Specifications
Main Technical Parameter



Max. Output 300kg/h
Screw Diameter Φ75mm
Die Thickness 0-3mm
Roller Diameter Φ400mm
Adjust Distance Of Rolller 0-50mm
Ratio 48:01:00
T-die Width 850mm
Surface Length Of Roller 1000mm
Roller Number 3pcs
Extruder Power 132kw
Barrel Heating Power 36kw
Die Heating Power 15kw
Mesh Change Heating Power 11.8kw
Calendar Motor Power 9kw
Rewinding Motor Power 3.2kw
Air Pressure 0.6Mpa
Water Consumption 20m3/h
Air Consumption 0.1m3/h
Sheet Thickness Range 0.2-1mm
Max. Sheet Width 700mm
Sheet Roll Diameter 600mm





Auto loader



Model DTC-800
Power 38V/50HZ 3 Phase
Loader Motor Power 3kw
Material Feeding Motor Power 0.75kw
Material Feeding Pipe Diameter 133mm
Material Feeding Height 2500mm
Capacity 850kg/h
Load Angle 45°
Material Box Volume 280kg
Dimension 900×900×950mm
Weight 200kg





Dimensions (L × w × H)



Extruder 4500×2300×1800mm
Calender 3000×2300×1600mm
Rewinder 4600×2000×2000mm
Eletric Controller 1180×800×2215mm

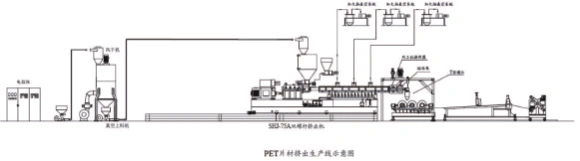

Equipment datails
Datails
