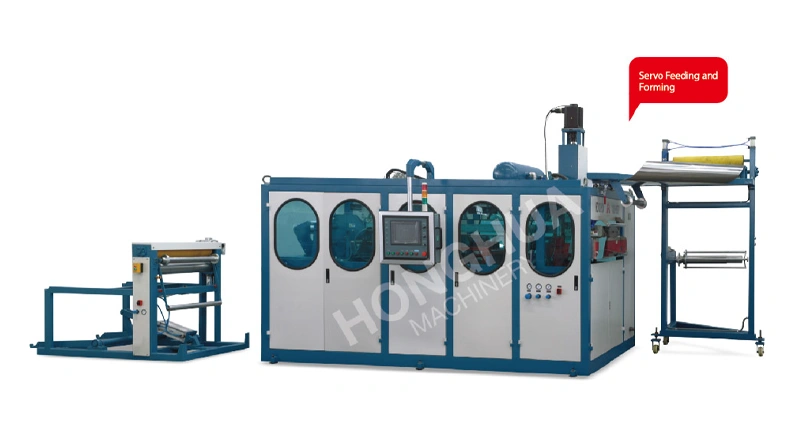

HSC-660A/HSC-660C thermoforming machine is a combination of mechanical, electrical and pneumatic components, and the whole system was controlled by micro PLC. It is operates with man-interface, which can works all by itself. It combines the material feeding, heating, drawing, forming, cutting and transporting into one process.
| Model | HSC-660A/C |
| Max. forming area | 250×580(420×580)mm |
| Max. forming depth | 120mm |
| Max. width range of sheet | 300-660mm |
| Thickness range of sheet | 0.2-2.0mm |
| Max. sheet roller diameter | 710mm |
| Air pressure | 0.7Mpa |
| Water consumption | 100L/min |
| Air consumption | 2000Liters/min |
| Manufacturing speed | 10-35Cycles/min |
| Power (three-phase four-wire) | 3×380V+NP+PE,50H |
| Heating power | 60kw |
| Main motor power | 5.5kw |
| Feeding motor power | 2.2kw |
| Rewinding motor power | 0.37kw |
| Weight | 4000kg |
| Main machine(LxWxH) | 3300×1650×2250 mm |
| Rewinder (LxWxH) | / |
| Cutting device(LxWxH) | 1100×1350×1350 mm |
