Multi-Function Thermoforming Machine

HSC-720 Multi-Function Thermoforming Machine is designed with most advanced Pressure & vacuum forming technology, a combination of mechanical, electrical and pneumatic components, and the whole system was controlled by PLC. The machine has man-interface operation, feed sheet by chain, mould running by cam, press by servo-motor, Thermoforming and vacuum forming working together. It combines the material-feeding, heating, forming, cutting and stacking into one process.

Consult an expert

Product Overview

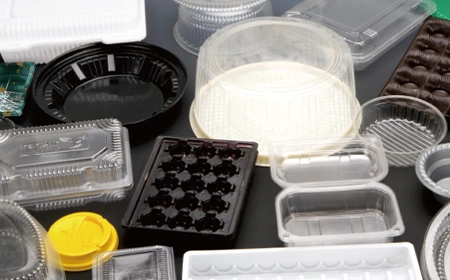

Applicable to HIPS, PS, PP, PVC, PET, EPS and other plastic molding, the production of a variety of high transparent, high tensile, shallow deep square and irregular shape packaging products. Such as: fast food box, cake box, fresh tray, medicine injection tray, seedling basin, electronic packaging, etc.

Features

Drove by cam, the highest run rate of up to 40n/1 min.
Chain Drove by servo motor
Pre-forming drove by servo motor with two screws
Pressure forming &vacuum forming
In-mould cutting
Full-automatic include stacker
Suitable for EPS products forming.

Specifications

Model	HSC-720
Maximum forming area	320×720mm
Maximum forming depth	140mm
Maximum width rage of sheet	500-780mm
Thickness range of sheet	0.2-2.0mm
Maximum sheet roller diameter	800mm
Air pressure	0.7Mpa
Water consumption	100 Liters/min (15-20℃)
Air consumption	5000 Liters/min
Max manufacturing speed	40 Mould/min
Forming motor	7.5kw (Servo)
Heating motor power	68kw
Main motor power	4kw
Feeding motor power	5kw (Servo)
Rewinding motor power	0.37kw
Stacker motor	2kw (Servo)
Weight	8000kg
