Full-automatic Plastic Cup Thermoforming Machine

HFM-700B is the world's most advanced thermoforming technology, using machine, electricity, gas integration design, six-axis linkage control servo motor coordination process.

Consult an expert

Product Overview

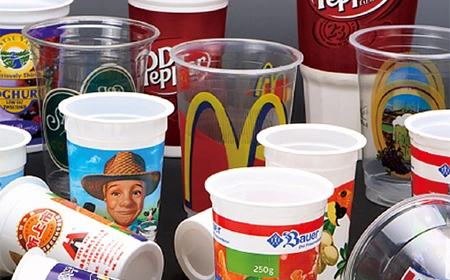

Specializing in the production of PP, PS, HIPS, PVC, PET, PLA, PC and biodegradable sheet and other thermoforming products.

Features

Six-axis control six servo motor orchestration and joint movements
Chian Drove by servo motor
Germany Heater, segment control
Main cam drove by Inverter motor
Pre-forming drove by servo motor
Presureforming
''V'' type stacker drove by Servo motor
Full-automatic
Contact with curling .printing and packing machine

Specifications

Model	HFM-700B
Maximum forming area	320×680mm
Maximum forming depth	170mm
Maximum width	820mm
Thickness range of sheet	0.2-2.5 mm
Maximum sheet roller diameter	1200mm
Air consume	8m³/min 0.7Mpa
Heating power	150kw
Main motor power	7.5kw
Max speed	42 Cycles/min
Input power	Three-phase four-wire AC380V±15V
Installed Power	180kw
Running Power	50kw
Total Weight	16T
Thermoforming Weight	12T

Equipment datails

Tilting mould forming

V Type Stacker

Bring out one layerbyone layer

Push out count and stacking
