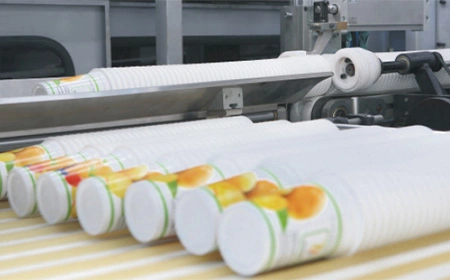

Mainly used in PP, HIPS, GPPS, EPS and other plastic cup printing, production of various yogurt cups, juice cups, jelly cups, ice cream cups, beverage cups printing.
| Number of color head | 4 Colors | 5, 6, 7 Colors |
| Max. production speed | 200 Pieces/min | 430 Pieces/min |
| Max. printing length | 680mm | 390/508mm |
| Max. Printing width | 150mm | 130mm |
| Max. diameter of container on the edge | 230mm | 140mm |
| Min. diameter of container on the edge | 70mm | 50mm |
| Max. height of container | 40-170mm | 40-170mm |
| Diameter of printing plate roller | 266mm | 177mm |
| Diameter of central roller | 522mm | 708mm |
| Printing sectors on central roller | 2 | 4 |
| Cup taper | 3-13° | 3-13° |
| Number of mandrels | 8 | 8 |
| Electrical installed power | 35kw | 35kw |
| UV power | 8kw (Adjustable) | 8kw (Adjustable) |
| Max. air consumption | 800 L/min. | 800 L/min. |
| Adjustable speed | From 0 to max. | From 0 to max. |
| Weight | 7000kg approx. | 8000kg approx. |
| Warranty period (CAM INDEX) | three years | three years |
