Multi-Function Thermoforming Machine
Introduction
HSC-720 Multi-Function Thermoforming Machine is designed with most advanced Pressure & vacuum forming technology, a combination of mechanical, electrical and pneumatic components, and the whole system was controlled by PLC. The machine has man-interface operation, feed sheet by chain, mould running by cam, press by servo-motor, Thermoforming and vacuum forming working together. It combines the material-feeding, heating, forming, cutting and stacking into one process.
If you have any questions?
Application area

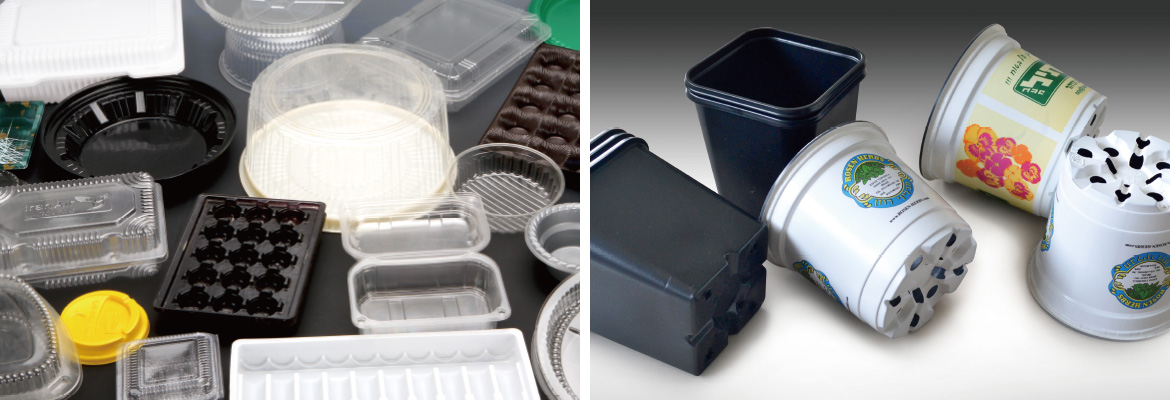

Applicable to HIPS, PS, PP, PVC, PET, EPS and other plastic molding, the production of a variety of high transparent, high tensile, shallow deep square and irregular shape packaging products. Such as: fast food box, cake box, fresh tray, medicine injection tray, seedling basin, electronic packaging, etc.
Main Feature
1 .Drove by cam, the highest run rate of up to 40n/1 min.
2. Chain Drove by servo motor
3. Pre-forming drove by servo motor with two screws
4. Pressure forming &vacuum forming
5. In-mould cutting
6. Full-automatic include stacker
7. Suitable for EPS products forming.
| Maximum forming area | 320×720mm |
| Maximum forming depth | 140mm |
| Maximum width rage of sheet | 500-780mm |
| Thickness range of sheet | 0.2-2.0mm |
| Maximum sheet roller diameter | 800mm |
| Air pressure | 0.7Mpa |
| Water consumption | 100升/分 Liters/min(15-20℃) |
| Air consumption | 5000升/分 Liters/min |
| Max manufacturing speed | 40模/分 Mould/min |
| Forming motor | 7.5kw(伺服Servo) |
| Heating motor power | 68kw |
| Main motor power | 4kw |
| Feeding motor power | 5kw(伺服Servo) |
| Rewinding motor power | 0.37kw |
| Stacker motor | 2kw(伺服Servo) |
| Weight | 8000kg |
