HSJP-100B
Plastic sheet Extrusion Line
Introduction

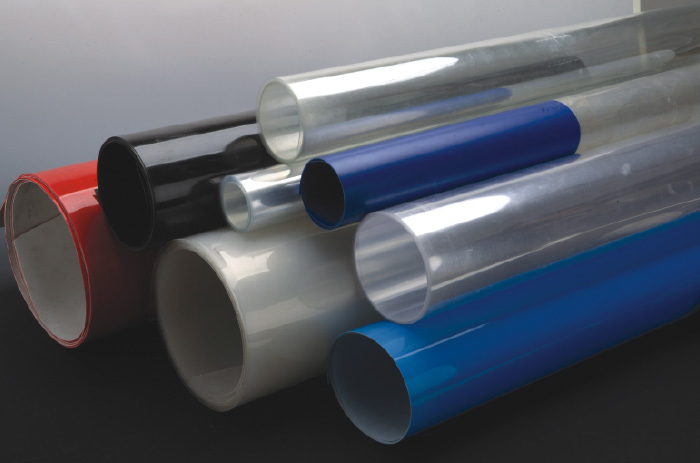

Suitable for the production of polypropylene (PP), high impact polystyrene (HIPS), polyethylene (PE) and other plastic sheets, for the production of plastic sheet molding, stationery supplies.
call to us
If you have any questions?
Main Features

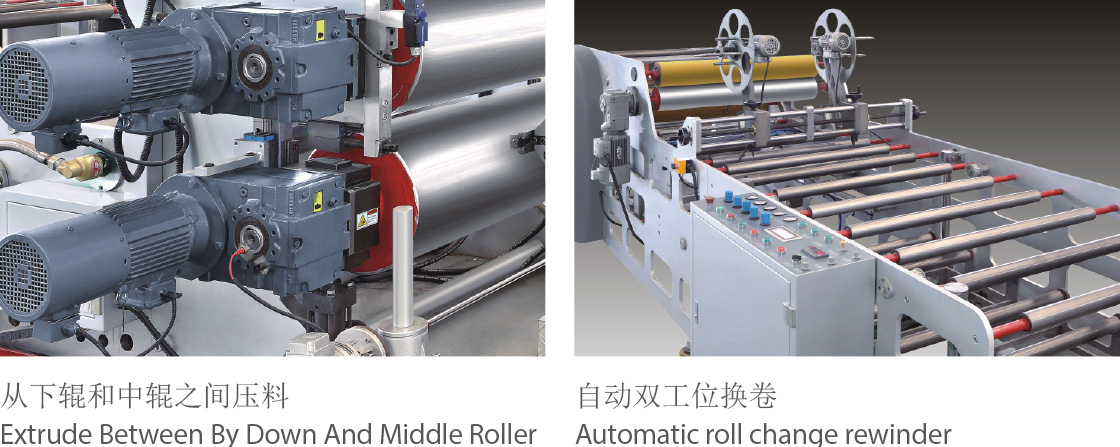

The machine is a combination of extruder, calender, rewinder and electric control box etc. The barrel have advanced designed, lower the height and install Insulation components, Energy Recovery from the screw rotate and run back to dryer to save energy and improve the capacity.
| Maximum output | 350kg/h |
| Heating power of die head | 15kw |
| Diameter of screw | 100mm |
| Heating power of screen changer | 5kw |
| Thickness of die mouth | 0-2.5mm |
| Motor power of calendar | 3×2.2kw |
| Diameter of roller | 400mm |
| Motor power of rewinder | 2.2kw |
| Adjust distance of roller | 0-50mm |
| Air pressure | 0-6Mpa |
| Diameter ratio | 33:01:00 |
| Water consumption | 20m3/h |
| Width of die mouth | 850mm |
| Air consumption | 0.1m3/h |
| Face length of roller | 1000mm |
| Sheet thickness range | 0.15-2mm |
| Number of roller | 3个 |
| Width Maximum | 720mm |
| Motor power of extrude | 75kw |
| Heating power of drum | 22kw |
