HFM-700B
Plastic Cup Thermoforming Machine
Introduction

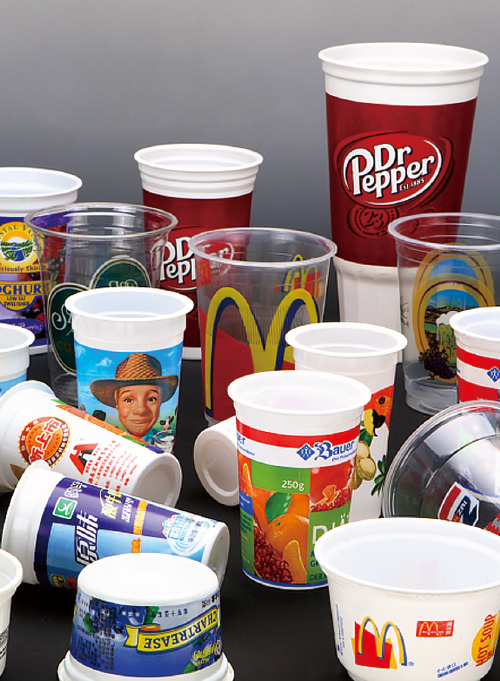

HFM-700B is the world's most advanced thermoforming technology, using machine, electricity, gas integration design, six-axis linkage control servo motor coordination process, specializing in the production of PP, PS, HIPS, PVC, PET, PLA, PC and biodegradable sheet and other thermoforming products.
call to us
If you have any questions?
Main Features
1. Six-axis control six servo motor orchestration and joint movements
2. Chian Drove by servo motor
3. Germany Heater, segment control
4. Main cam drove by Inverter motor
5. Pre-forming drove by servo motor
6. Presureforming

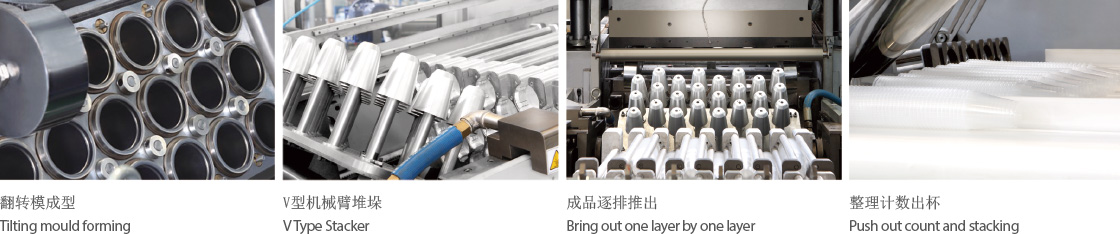

7. ”V” type stacker drove by Servo motor
8. Full-automatic
9. Contact with curling .printing and packing machine
| Maximum forming area | 320×680mm |
| Maximum forming depth | 170mm |
| Maximum width | 820mm |
| Thickness range of sheet | 0.2-2.5 mm |
| Maximum sheet roller diameter | 1200mm |
| Air consume | 8m3/min 0.7Mpa |
| Heating power | 150kw |
| Main motor power | 7.5kw |
| Max speed | 42次/分 |
| Input power | 三相四线AC380V±15V |
| Installed Power | 180kw |
| Running Power | 50kw |
| Total Weight | 16T |
| Thermoforming Weight | 12T |
